Obsidian

2023

This is Obsidian

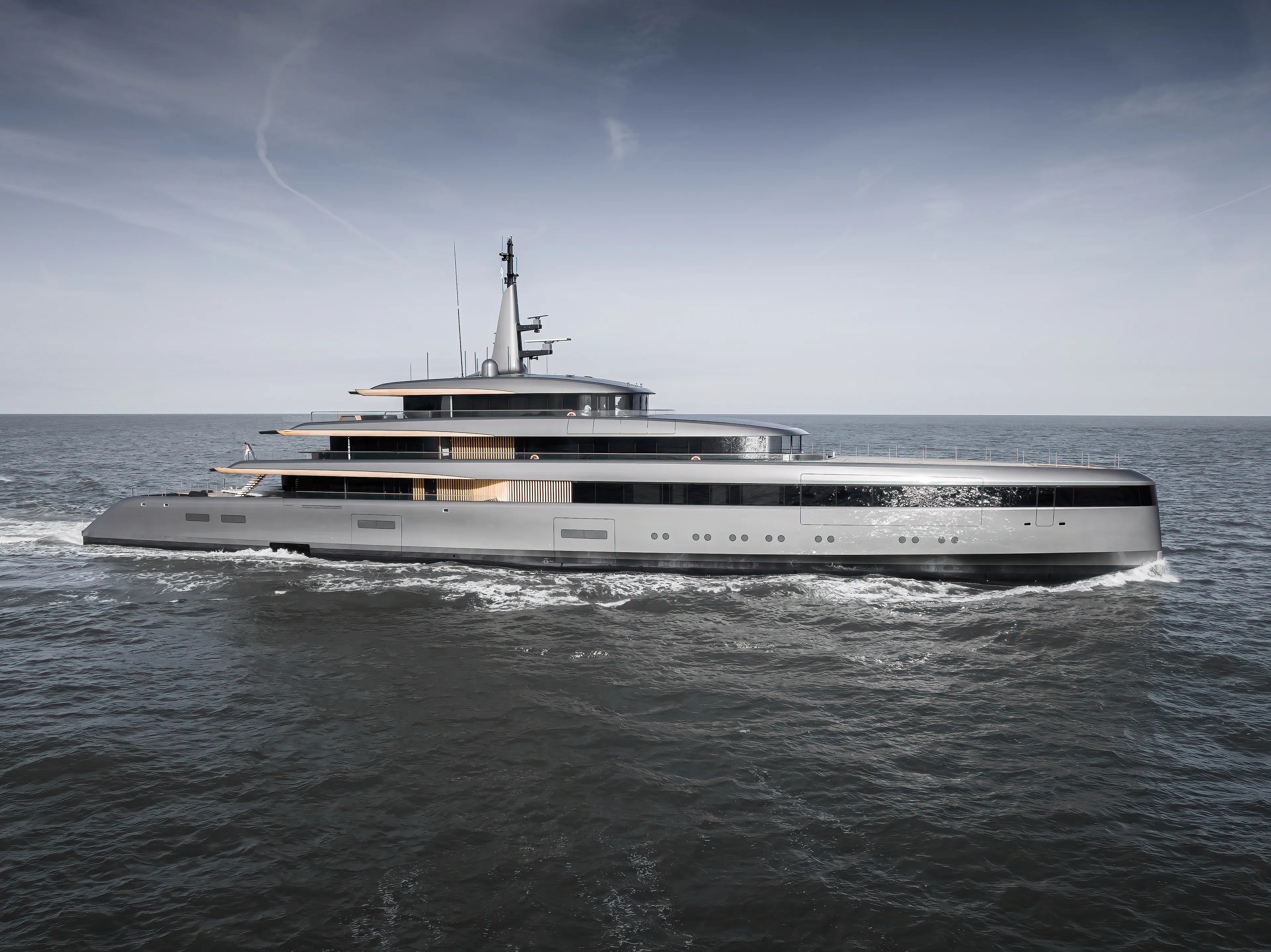

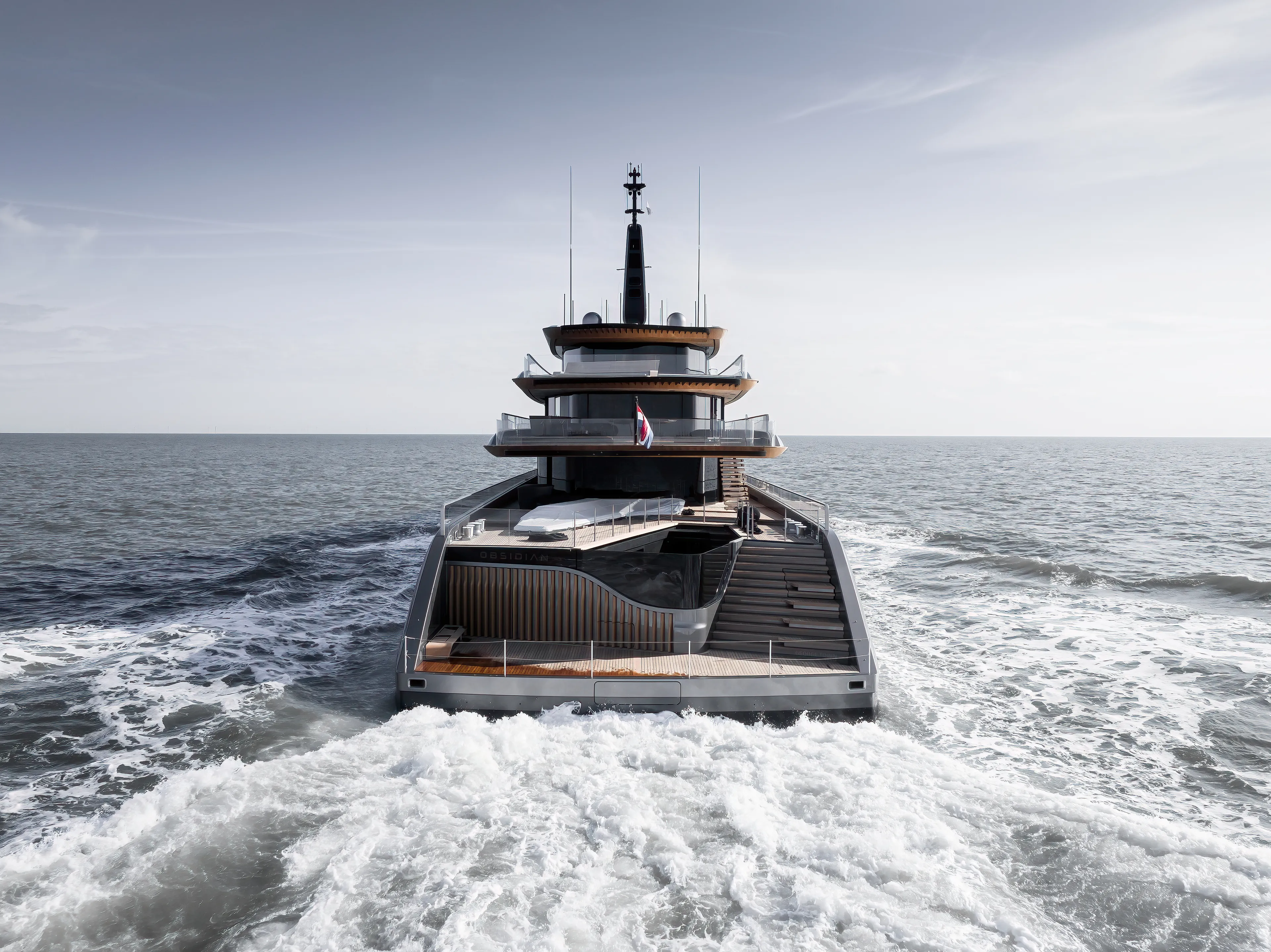

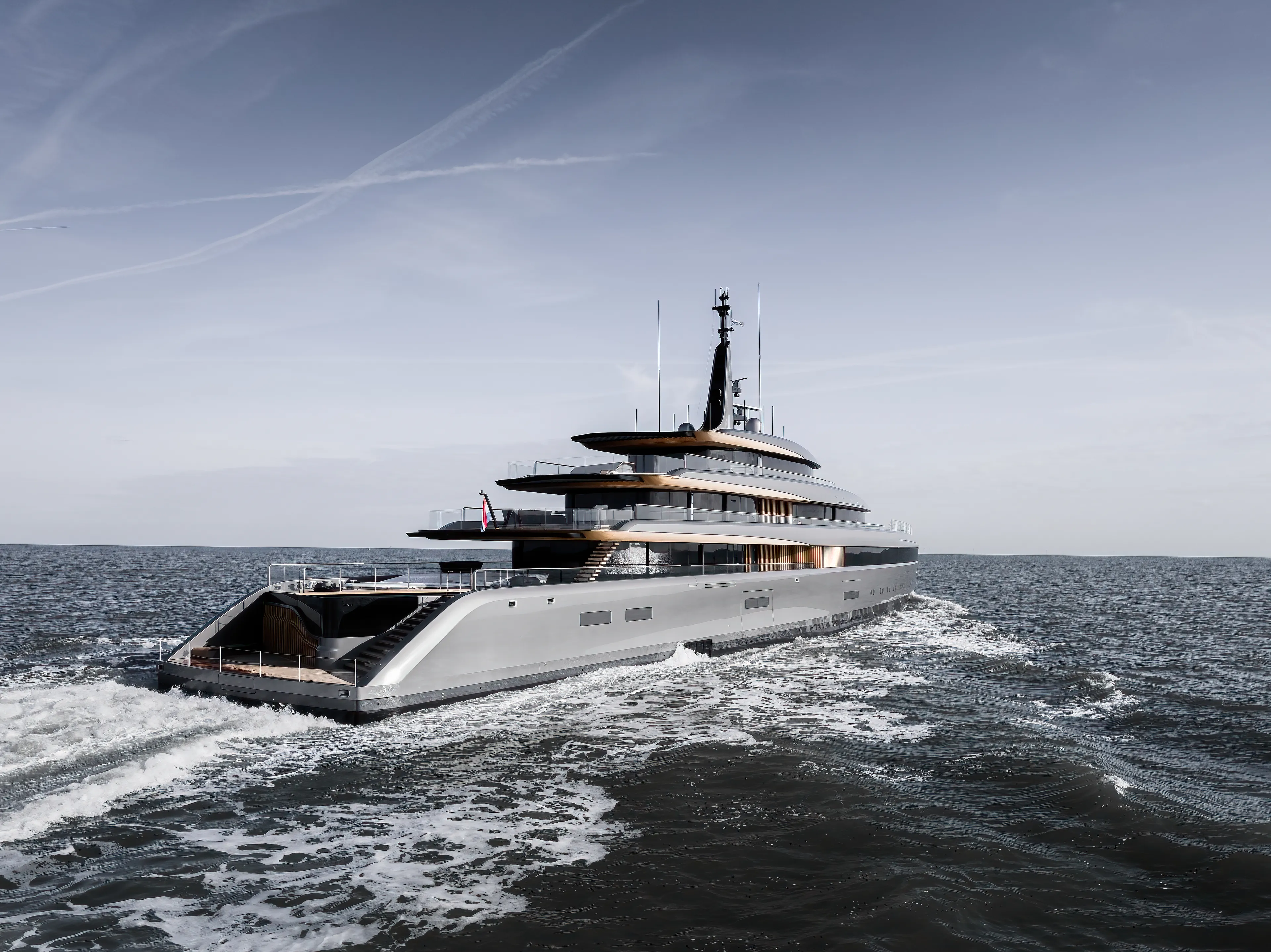

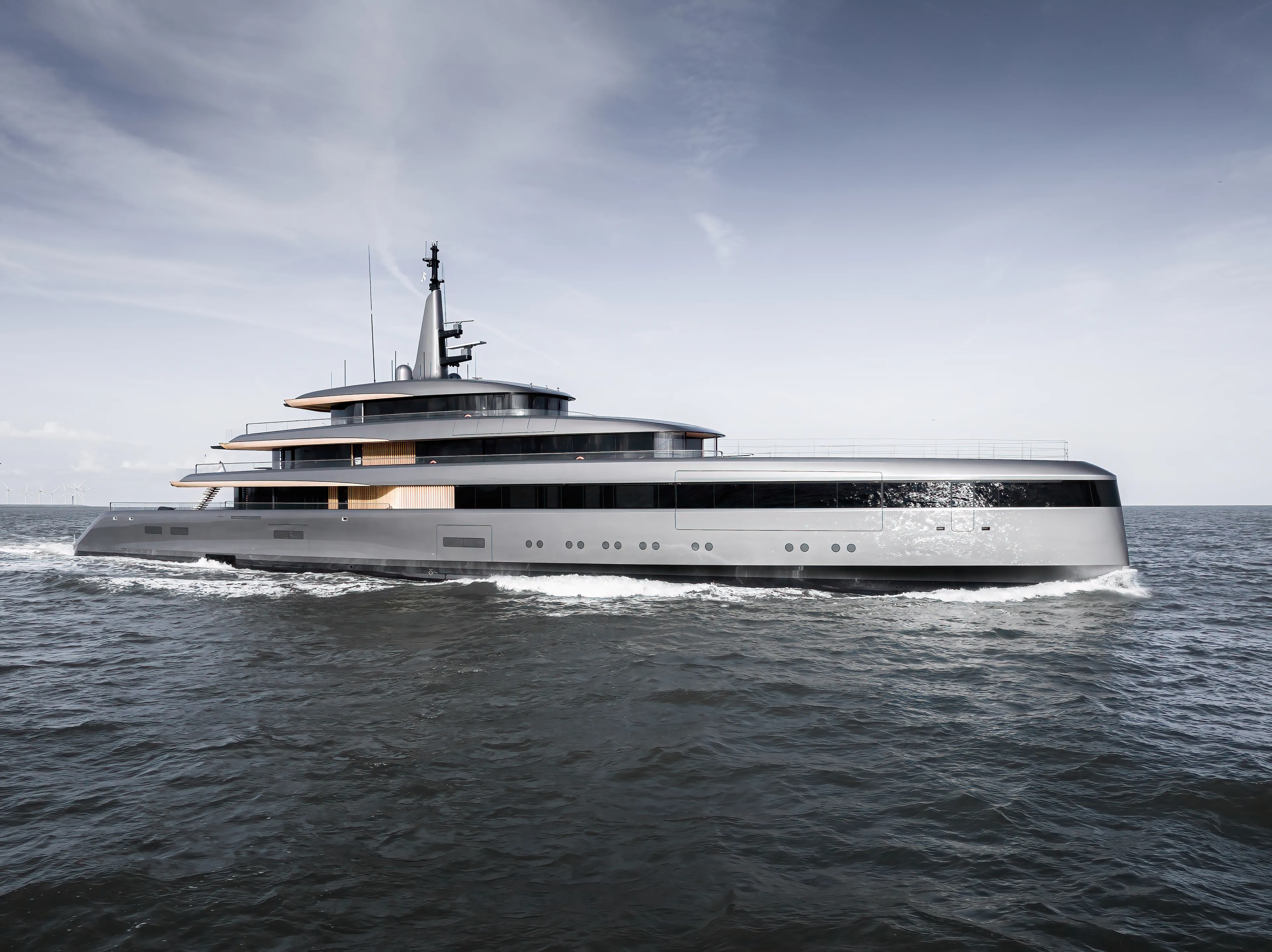

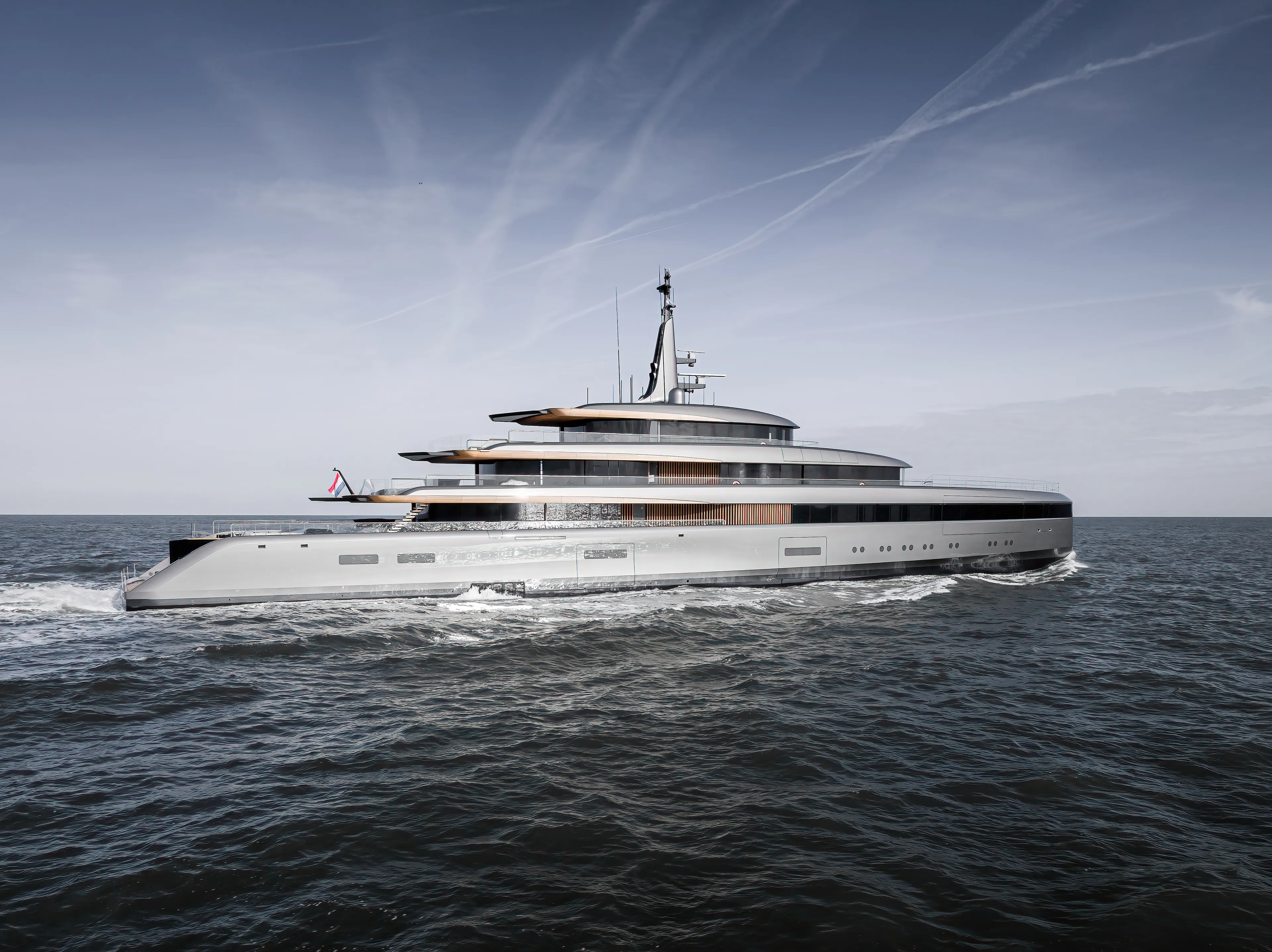

The 84.20-metre Obsidian is one of the most technically advanced and dynamically designed Feadships of recent years and an important step towards Feadship’s path toward building zero-emission superyachts by 2030. Low-profile, clean shapes and strong bow aside, she is the first of a new generation of large yachts optimised at cruising speed instead of top speed, weight control, advancements in electric propulsion, she can run her generators on Hydrotreated Vegetable Oil (HVO) fuel. Using Feadship’s Advanced Electrical Drive (FAED) program for diesel-electric hybrid power, Obsidian has 4.5 times more electrical storage capacity than Feadship’s first hybrid yacht, Savannah.

Specifications

Hull 710
Year 2023
Length 84.20m / 276′2″
Speed 17 knots
Beam 13.65m / 44′9″
Draught 3.75m / 12′3″
Depth 7.31m / 24′0″
Range 5500
Launch name Obsidian
Current name Obsidian

Design

Exteriordesign RWD
Interiordesign RWD/MONK

Propulsion

Mainengines 2 x Veth CRP thruster VL-1550i-CR 2000kW at 750rpm
Generators 2 x Caterpillar C32B 1461.0ekW 2300rpm, 2 x Caterpillar C32 ACERT DITTA-SCAC 873.0ekW 2100rpm

Capacity

Fuelcapacity 255,000 litres / 67,363 USG
Fuel capacity 255 m³
Watercapacity 52,400 litres / 13,842 USG
Water capacity 52 m³

Accommodation

Guests 14
Crew 25
Staterooms 7
